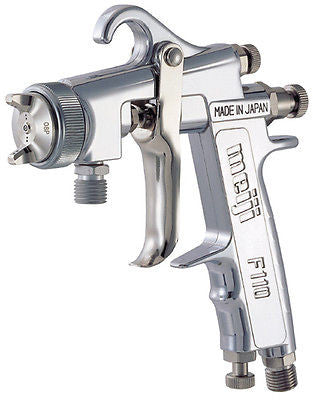

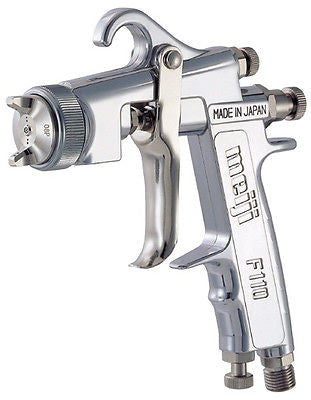

Meiji F110 F-110 Gravity/Suction Spray Gun -Various Nozzle & Shape Made in Japan

177⁰⁰

1 (unit) Meiji F-110 Spray Gun Gravity (Gun Only)

Made in Japan

This Spray Gun without doubt is a better quality and built than the other spray guns in

the price range.

Triangle or Tulip Pattern Shape- We have it in nozzle size 1.0mm/1.3mm/1.5mm

/2.0mm

Semi-Tulip Pattern Shape - We have it in nozzle size 1.3mm/1.5mm

After selecting the Pattern Shape, please select the Nozzle Size and Feed System by

emailing us.

Due to eBay limitation, we are unable to list all in the variations, but email us if you need

specific nozzle size.

Stocks are very limited, and might be sold out because we have store front shop selling the

spray guns as well.

Product Description

State-of-the-art Hand Spray Gun based on customer satisfaction
	New atomizing system Improving the spray finishing by optimum air flow

High transfer efficiency Heavy duty Excellent handling

Realizing high quality paint film by optimum spraying paint volume.
Stable air flow vastly realizes the prevention of air pressure lost.
Reduction of paint consumption, and small air consumption in saving energy.
Optimum air flow brings the reduction of paint adhesion to air cap set.
Easy handling with optimum weight balance and light weight.
Reduction of trigger load, and improvement of usability with lower 　　resistance packing.
Waterborne compatibility.
Improvement of parts durability.
Addition of Semi-tulip pattern.
Each nozzle bore size has its own air cap set.
Air cap sets for suction, gravity, and pressure type are interchangeable 　　in the same fluid nozzle bore size

Special air cap designed specitifically for touch-up work
　　(F110-S13ST,F110-S15ST,F110-G13ST,F110-G15ST)

　　Designed specifically for touch-up work to provide the ideal spray for painting small to
　　medium-sized areas.

Air cap selection guide for F110 series

Air Cap

08P

10P

13P

15P

10T

13T

15T

20T

13ST

15ST

08R

25R

Nozzle
bore
mm

0.8

1.0

1.3

1.5

2.0

2.5

Suction and gravity type are interchangeable for pressure type and vice versa.

Spraying paint volume and air consumption are adjusted by changing air cap set and fluid nozzle.

Mark 〇 stands for interchangeable.

odel No.		F110-G10 <F110-G10T>	F110-G13 <F110-G13T> (F110-G13ST)	F110-G15 <F110-G15T> (F110-G15ST)	F110-G20 <F110-G20T>
Paint feed system		Gravity
Nozzle Bore	mm	1.0	1.3	1.5	2.0
Standard air cap		10 <10T>	13 <13T> (13ST)	15 <15T> (15ST)	20 <20T>
Spraying Pressure	MPa	0.25 <0.20> (0.25)
Spraying sidtance	mm	200
Air con-sumption	L/min	110 <170>	140 <200> (215)	160 <215> (225)	175 <225>
Paint spraying volume	mL/min	95 <90>	150 <160> (180)	180 <180> (205)	260 <235>
Maximum effective pattern width	mm	140 <180>	170 <210> (180)	180 <215> (190)	195 <240>
Pattern Shape		Triangle <Tulip> (Semi-Tulip)
Required compressor output	kW	0.4<1.5> or more	0.75<1.5>(1.5) or more
Weight	g	293
Standard paint cup		2GA,3G-U,4GD,4GB-U,4GP-U,4GPA-U,4G-TA
Measurement	m³	0.06/25PC

The biggest seller in the Meiji range, full size production spray gun for all industrial painting jobs.

Why buy from us?

Our products are all genuine imported from the factory.

Why buy something when you are not sure if it is real? Buy genuine product from us, a powerseller.

Postage:

Buyer who purchase multiple items, please do not adjust the postage fee, we will fix the postage fee after purchase.

Policy:

1. Please allow 3 working days for order preparation.

2. Upon Payment & Checkout, Please kindly email us your contact number. We need the contact number for shipping purpose

3. Items will be shipped from Australia/Overseas depending on the stock availability, an email will be send to notify you.
